metal..melody..riffs..solos
two chanells: clean is designel pedal friendly, distortion chanell is where dark magic begins. with two modes lead is built touch sensitive while rythm is bass focused
only the essentials
lead and rythm have seperate gain/master knobs and along with clean chanell share the same 3 band equalizer. on board boost will highlight solos
features
tube buffered effects loop, silent mode, footswitch and more...to be anounced as we are at the moment finalising the project
specifications
controls - sound
two chanell high gain amplifier , clean pedal friendly, distortion chanell with lead and rythm modes. shared 3 band equalizer , presence resonance knobs for fine tuning high frequencies and bass response depending on speaker cabinet

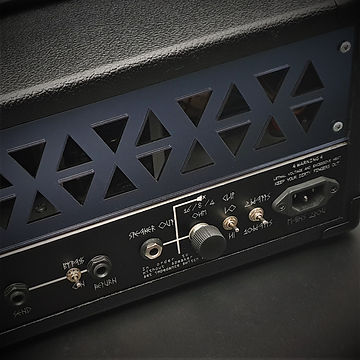

at the back
included footswitch's jack, is assigned to activate the built in boost chanells modes and to set the fx loop on or off
effects loop is tube buffered, transparent with send level to fine tune the ammount of signal entering time based effects,Â
single speaker jack with 4-8-16 Ω impedance selector
silent mode operation enables user to disconnect the speaker cabinet and use line out with level adjusting potentiometer and drive signal directly at sound card
valves
v1-2-3 ecc83:preamp stages, v4Â 5751/ecc81: effects loop, v5Â ecc83: phase iverter, v6-7Â 6L6 type: power amp
40watts pure tube power (2% THD)
customization
customer can choose the headshell colour combination, power amp tube selection, different voicing choices and other features during building stage
